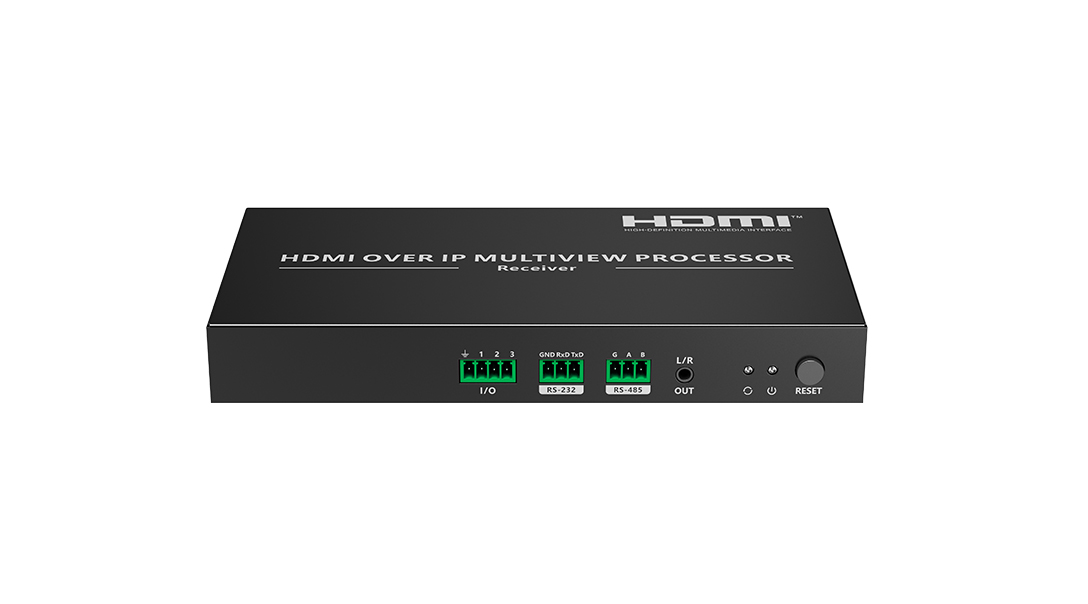

iMCS-RX-Multiview
HDMI OVER IP MULTIVIEW PROCESSOR
Features
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible.
3. Compatible with CAT5e/6 and above networking cables, the transmission distance can reach up to 120 meters when using CAT6 or above networking cables. The actual distance may vary slightly due to different switch performances.
4. Supports switch cascading.
5. Supports RS-232 Control.
6. Supports RS-485 Control.
7. Supports IR learning remote and control device by APP(20～60KHz).
8. Supports I/O interface control.
9. Supports POE(Power over Ethernet).
10. Support for 3.5mm L/R Channel Audio Separation.
11. After connecting to the iMCS over IP matrix, it supports receiving and processing multiple signals simultaneously. Paired with the iMCS APP, allowing remote control of the screen display view, providing four-panel and nine-panel screen view, also adjusting the view size and position freely.
12. Firmware upgrading
More
iMCS-IM02M
4K@60Hz HDMI™ over IP Matrix
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one or many-to-many connections through the gigabit switch.
5. Supports IR pass-back(20～60KHz);
6. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/ 1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/ 4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.
7. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control operation while connecting more than 100 TX-to-RXs).
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More
iMCS-IM01M
Full HD HDMI™ over IP Matrix
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one or many-to-many connections through the gigabit switch.
5. Supports IR pass-back(20～60KHz);
6. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.
7. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control operation while connecting more than 100 TX-to-RXs).
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
More
iMCS-IM01
Full HD HDMI™ over IP Matrix
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one or many-to-many connections through the gigabit switch.
5. Supports RS-232 passthrough and control.
6. The transmitter supports HDMI loop out.
7. Supports bi-directional IR pass-back(20～60KHz);
Supports IR learning remote and control device by APP.
8. Supports I/O interface control.
9. Supports POE(Power over Ethernet).
10. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/ 1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/ 4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.
11. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control
operation while connect
More
iMCS-IM02
4K@60Hz HDMI™ over IP Matrix
1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one or many-to-many connections through the gigabit switch.
5. Supports RS-232 passthrough and control.
6. The transmitter supports HDMI loop out.
7. Supports bi-directional IR pass-back(20～60KHz);
Supports IR learning remote and control device by APP.
8. Supports I/O interface control.
9. Supports POE(Power over Ethernet).
10. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/ 1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/ 4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.
11. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control
operation while conne
More
