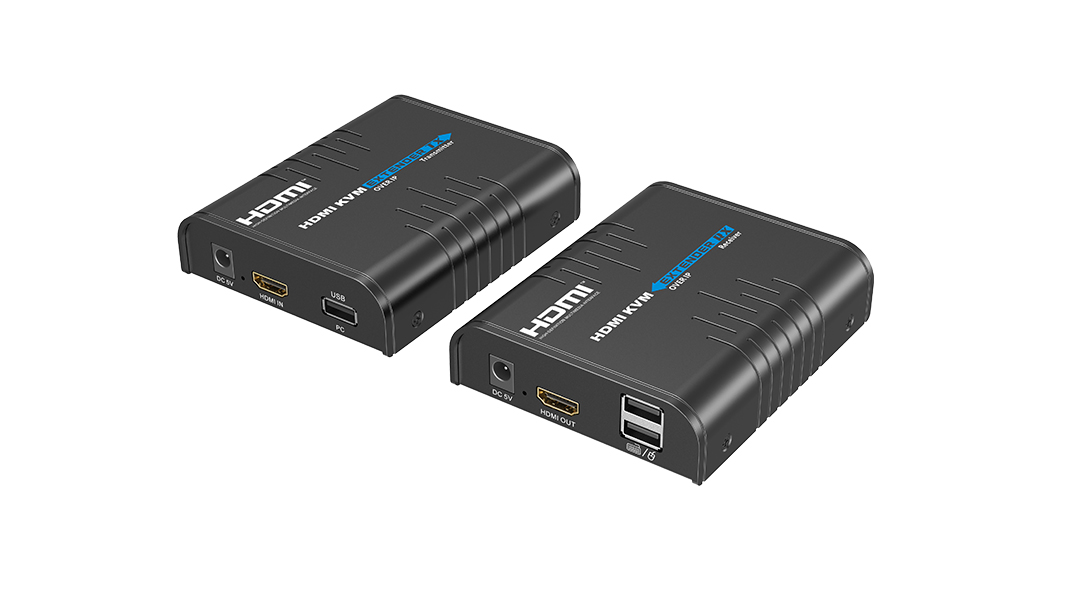

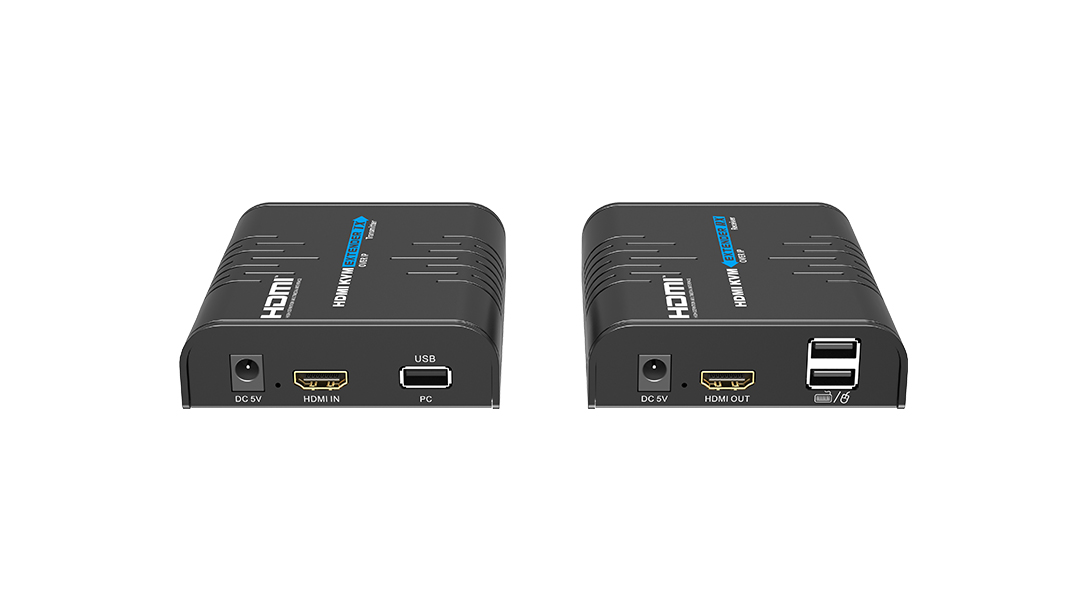

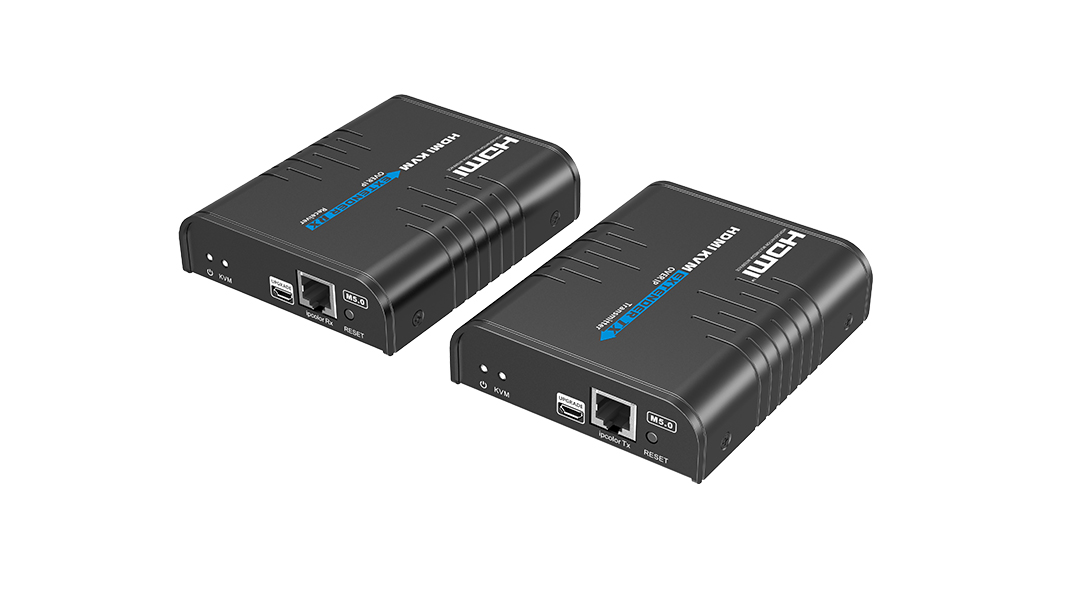

LKV373KVM-M5.0

HDMI KVM over IP Extender

1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
2. Supports up to 1920x1200@60Hz resolution, backwards compatible.
3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
4. Supports one-to-one, one-to-many, many-to-one and many-to-many connection through the gigabit switch.
5. Supports KVM control signal passback.
6. Supports 256 signal source inputs and 256 signal outputs.
7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration.
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

HDMI length

≤ 5m

Maximum transfer rate

4.96Gbps

Compatibility

HDMI 1.3，HDCP 1.4

Resolutions

1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600

Connection types

One-to-one connection
One-to-many connection
Many-to-one connection
Many-to-many connection
Switch cascading

Transmission distance

CAT5 80m / CAT5E 100m / CAT6 120m

Transmission latency

80~110ms

HDMI output

LPCM 2.0

USB

Mouse, keyboard, touch screen

Power Supply

DC 5V/1A

Power Consumption

TX ≤ 3.5W，RX ≤ 2.5W

Working temperature

- 20℃~60℃

Storage temperature

- 30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

Aluminium(Top cover); lron(Bottom cover)

Weight

TX：240g，RX：243g

Dimensions

109.6(L)x89.5(w)x26.3(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
