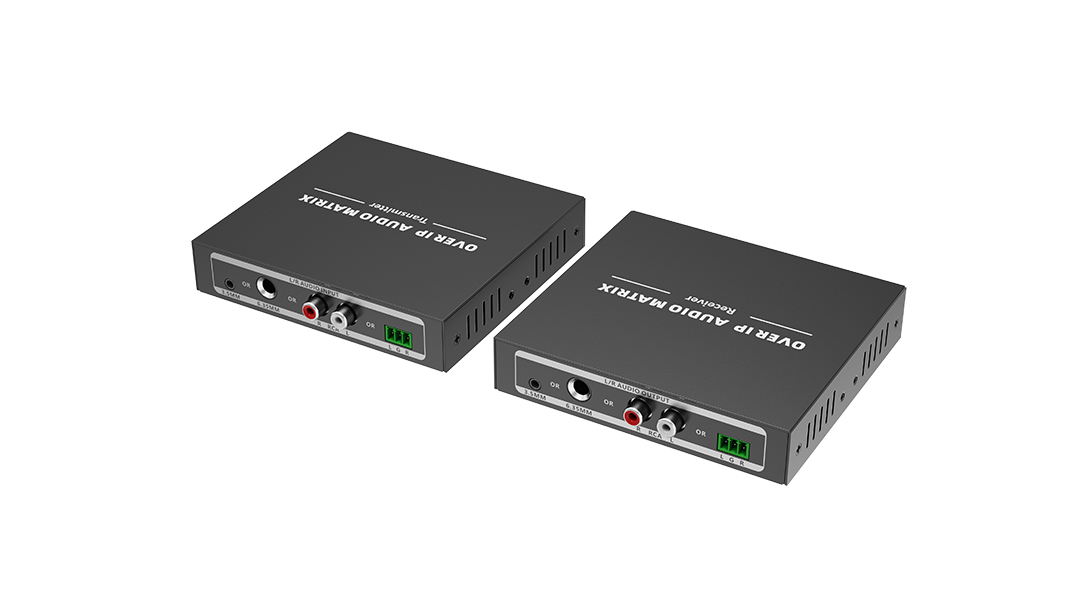

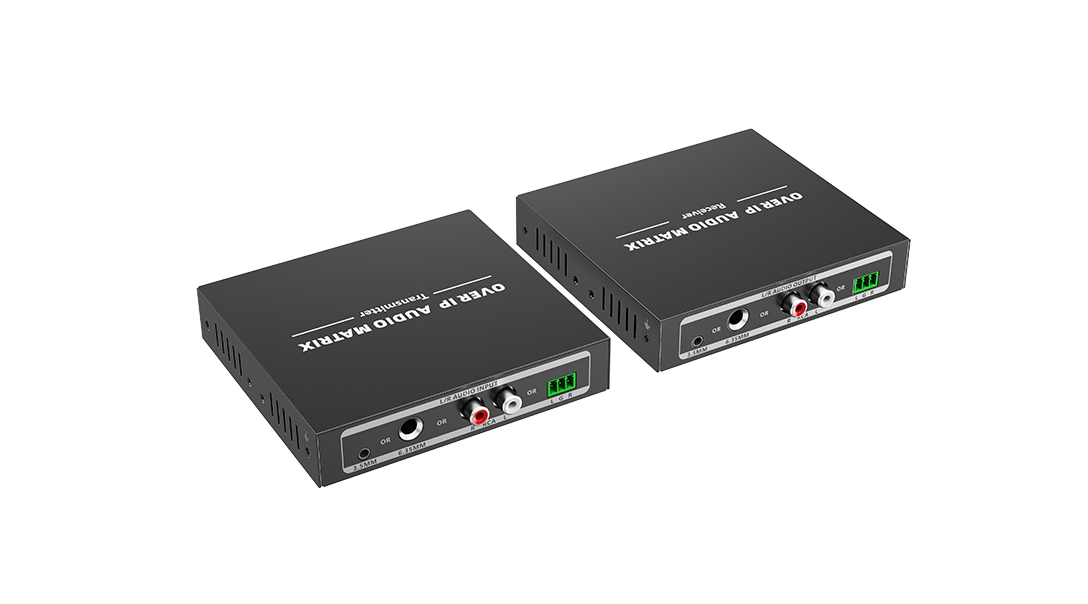

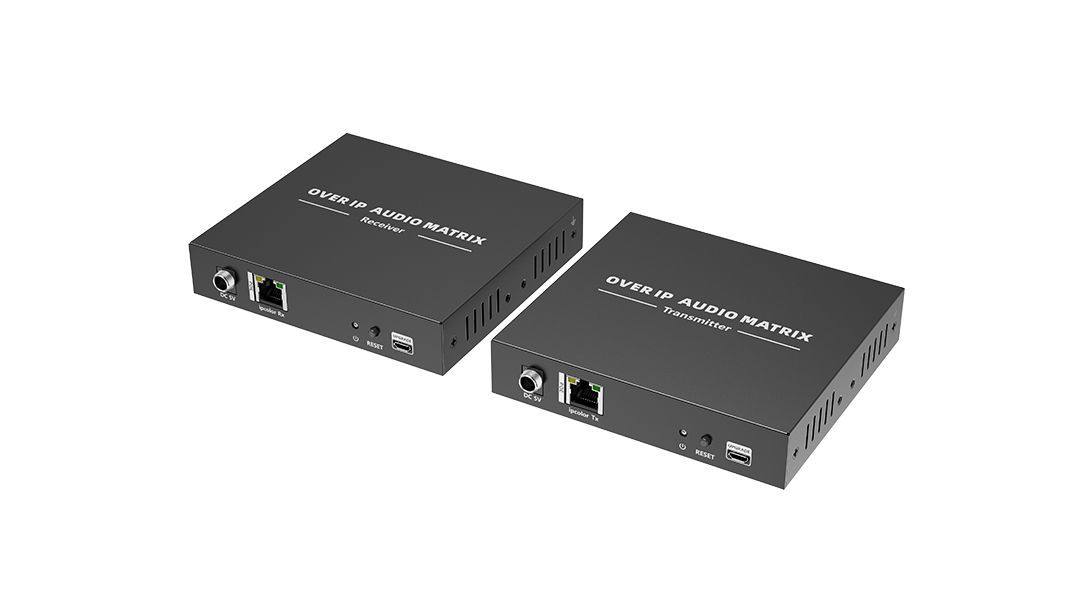

iMCS-Audio

Over IP Audio Matrix

· Features
1. Built on ipcolor STREAM™ technology to deliver low-latency transmission.
2. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
3. Supports one-to-one direct connection; can also achieve one-to-many or many-to-many connections via a network switch.
5. Easily switch audio sources by dragging and dropping within the companion mobile app.
6. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration.
7. Supports POE(Power Over Ethernet).
8. Firmware upgrading via Micro USB port.
9. Lightning protection, surge protection, ESD protection.
10. Supports stable 24/7 operation.
Introduction
Parameters
Downloads

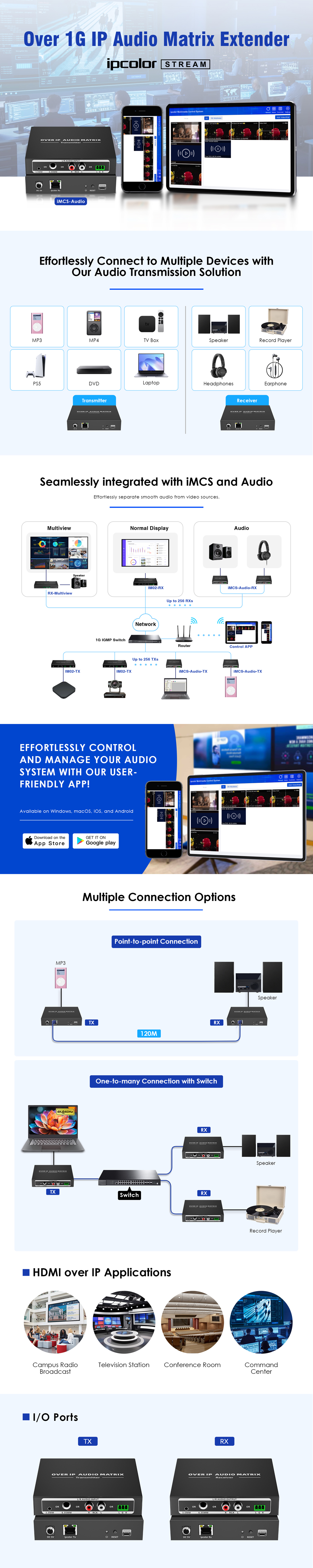

Connection types
One-to-one connection
One-to-many connection
Many-to-many connection
Switch cascading
Transmission distance
Cat6/6A/7≤120m
L/R output format
PCM 2.0
Power Supply
TX/RX:DC 5V/2A(alternative)
Power Consumption
TX ≤ 2W,RX ≤ 2W
Working temperature
- 20℃~60℃
Storage temperature
- 30℃~70℃
Humidity
0~90%RH (no condensation)
Housing
lron
Weight
TX:384g,RX:384g
Color
Black
Dimensions
125.0(L)*115.0(W)*25.0(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
