LKV477Mini-V2.0

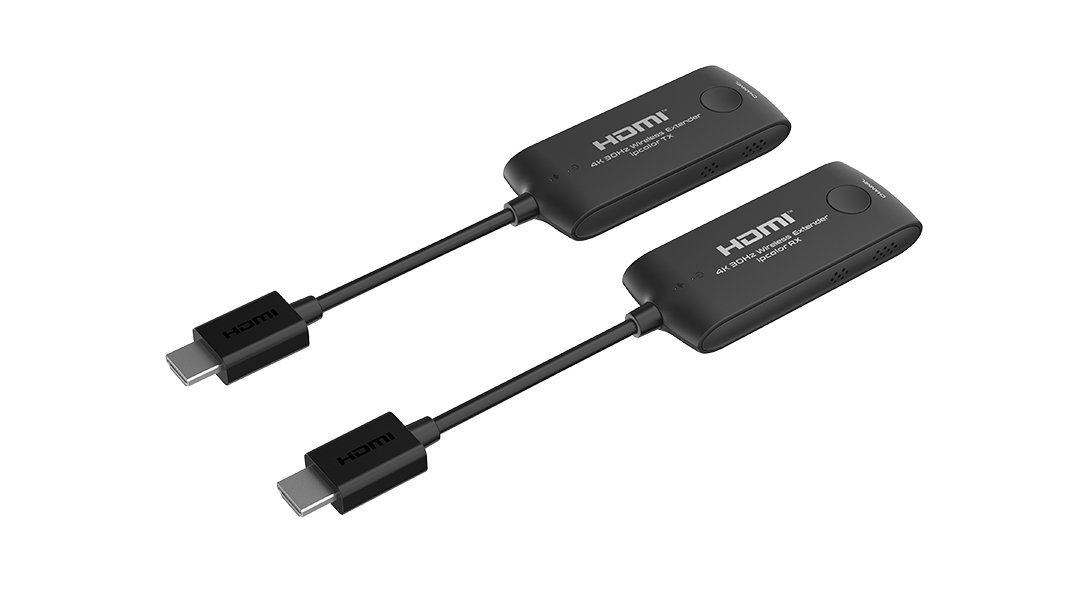

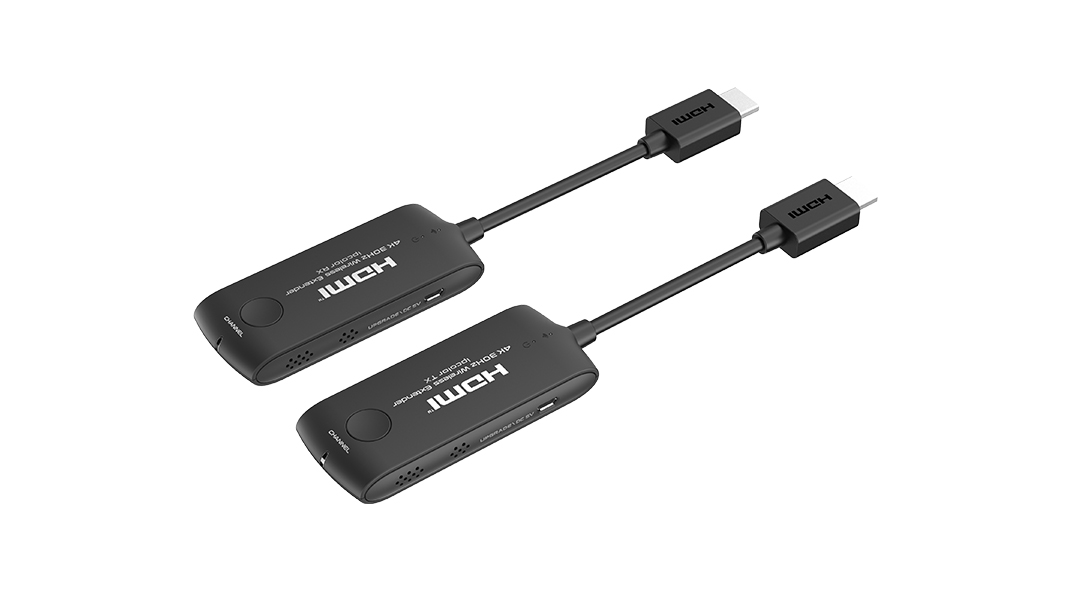

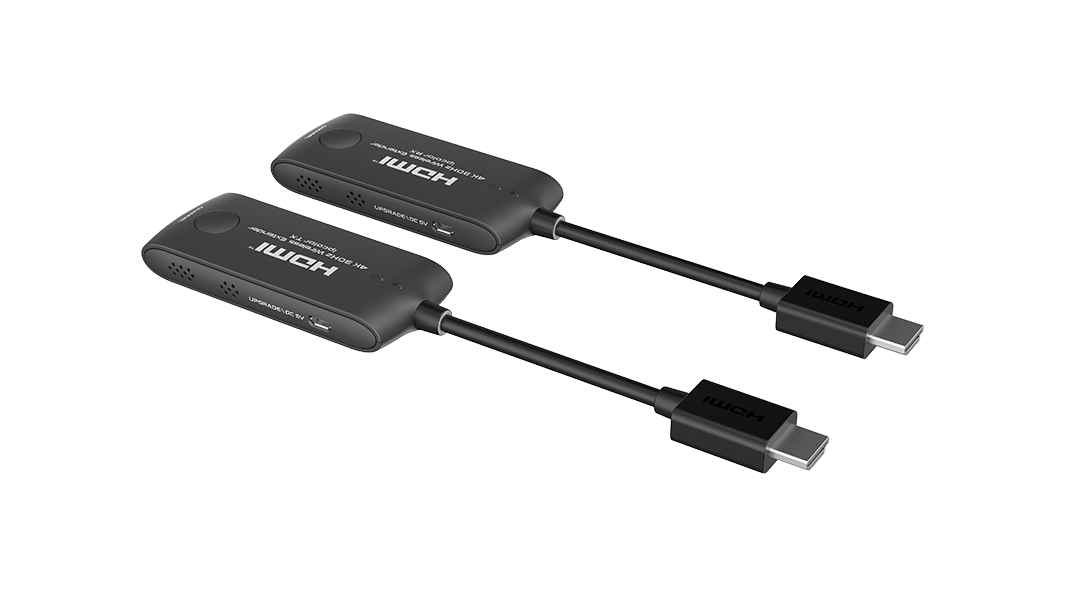

4K 30Hz HDMI Wireless Extender

· Features
1. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission.
2. Support up to 3840x2160@30Hz resolution, backward compatible.
3. Supports up to 16-to-1 wireless transmission, and the transmission distance up to 20 meters (line of sight).
4. In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
5. Support 5G wireless frequency bands, strong anti-interference.
6. Support firmware upgrade via Micro USB port.
7. Portable design, plug and play.
8. Supports stable 24/7 operation.
Introduction
Parameters
Downloads


Voltage/Current
Micro USB power supply (5V/1A)
Power consumption
TX < 4.5W, RX < 3.5W
HDMI version
HDMI 1.4
HDCP version
HDCP 1.4
Max transmission rate
10.2Gbps
Resolution supported
4096x2160@24/25/30Hz , 3840x2160@24/25/30Hz , 1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Wi-Fi Frequency Bands
5.18-5.24 GHz
Transmission distance
≤ 20m
Latency
100~260ms
Connection types
Up to 16-to-1
SSID pairing
Supported
