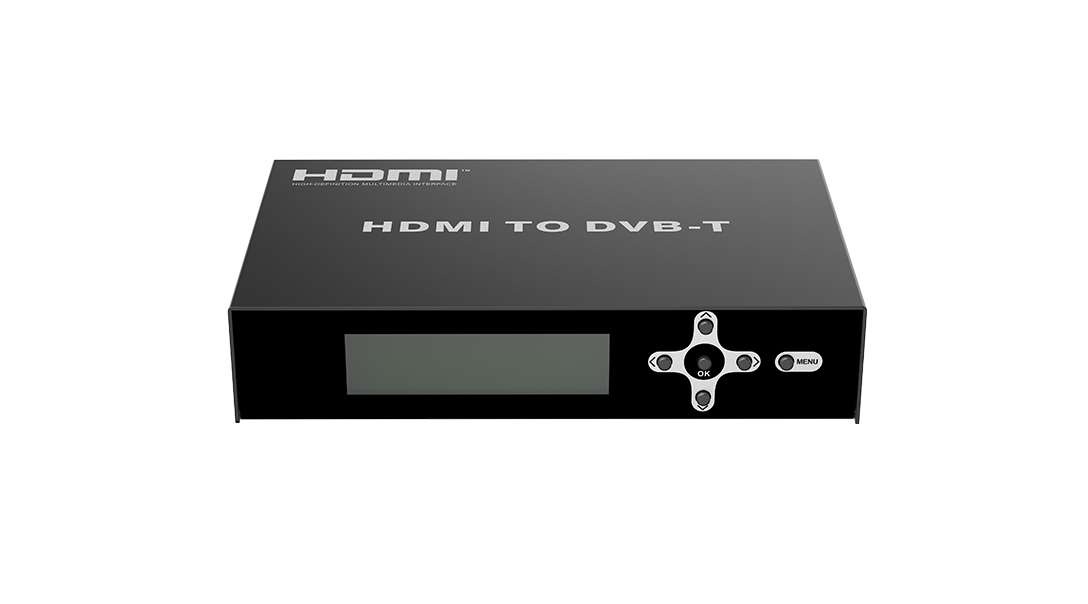

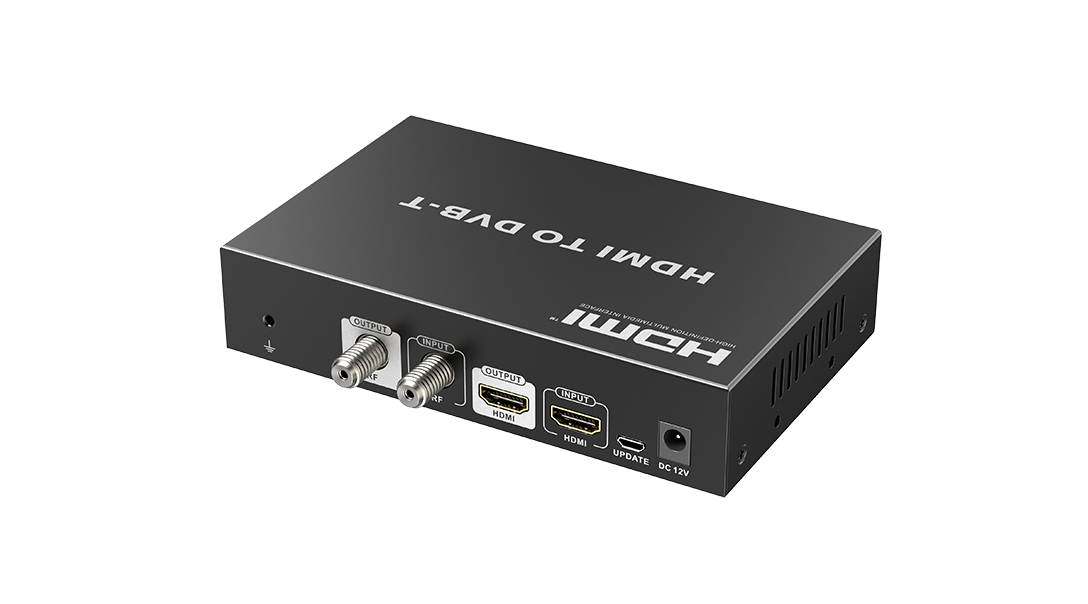

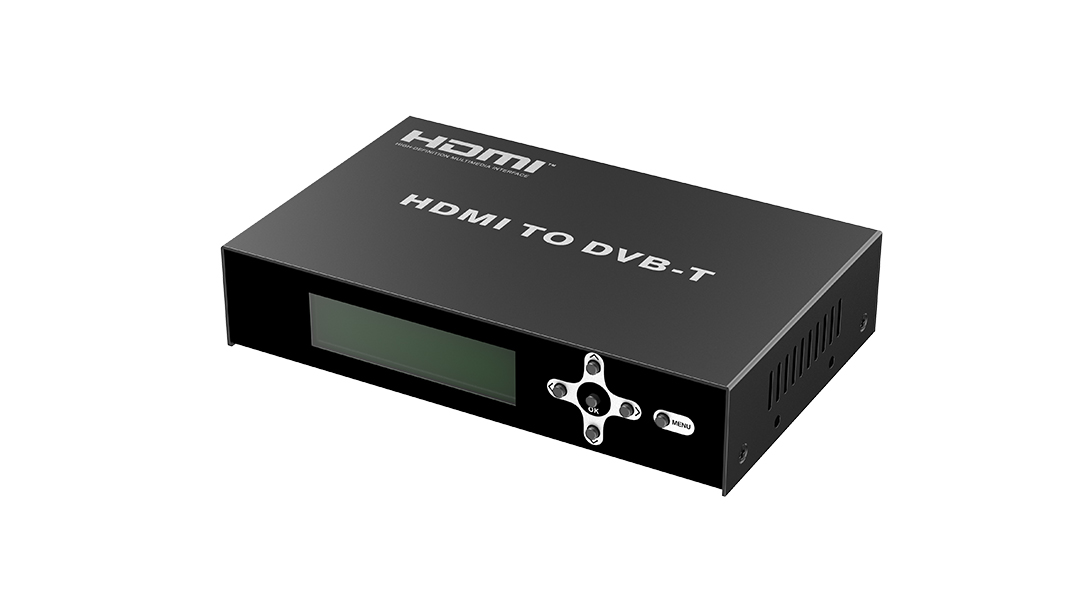

LKV479P-DVB-T

HDMI™ To DVB-T Converter

Features
1. Metal housing, stable and durable
2. Wall-mounted function, easy installation
3. Strong anti-noise and anti-interference ability
4. Support multiple modulators to be installed to distribute as many channels you need
5. Distribute one source to multiple displays with one modulator via CATV splitter
6. Support DVB-T digital high definition RF signal output
7. HDMI input signal resolution up to full HD 1080p@60Hz
8. Lightning protection, surge protection, ESD protection

Introduction

Parameters

Downloads

HDMI Signal

HDMI 1.3, fully compatibale HDCP1.2

HDMI DDC Signal

5Vp-p（TTL）

HDMI TMDS Signal

0.5~1.5Vp-p（TMDS）

Input HDMI Resolution Supported

480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、 1080P@24/25/30/50/60Hz

Video Encoding

H.264

Audio Encoding

MPEG2

Coaxial output Standard

DVB-T

Coaxial Cable reqired

RG6，RG7，RG11

Frequency

177.5 to 866MHz

Effective Bitrate

Max：24M bits

Insert Loss

0dBm

RF output Wattage(TX)

-40dBm~13dBm

RF Interface

British system（75Ω type F）

Delay Time

200~300ms（Depends on the decoding ability of receivers）

Audio format

Stereo PMC（44.1kbps, 48kbps）

Power Supply

DC12V/1A

Product Consumption

<7W

Working temperature

~20~60℃

Stock temperature

~30~70℃

Relative Humidity

0~90%RH（No Condensation）

Product Dimension

158x114.3x33mm

Weight

520g

Color

Black
