LKV582KVM-USB2.0

4K@60Hz HDMI KVM Extender USB2.0

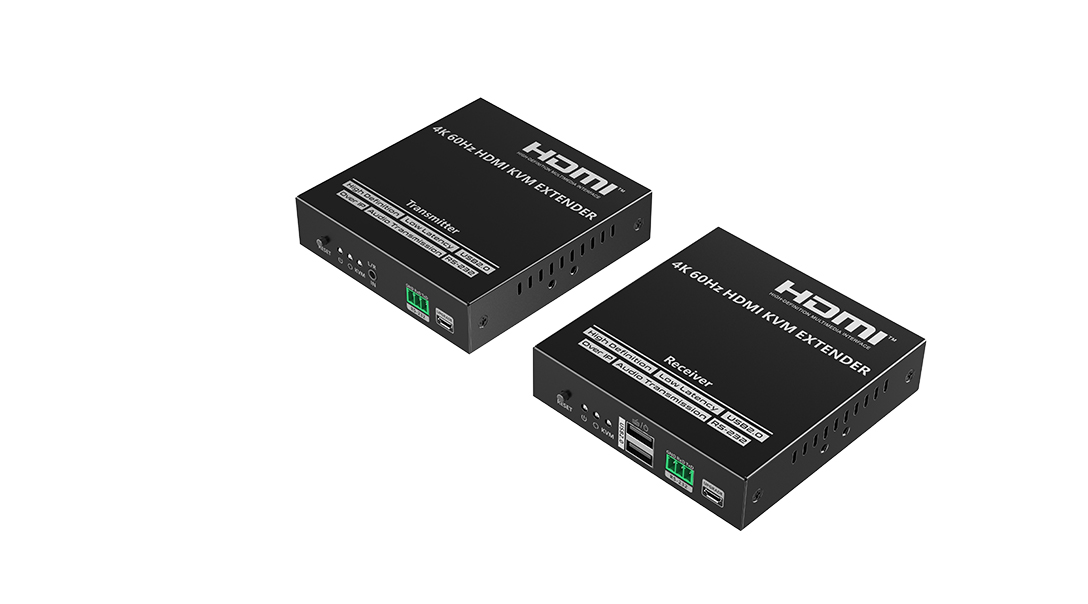

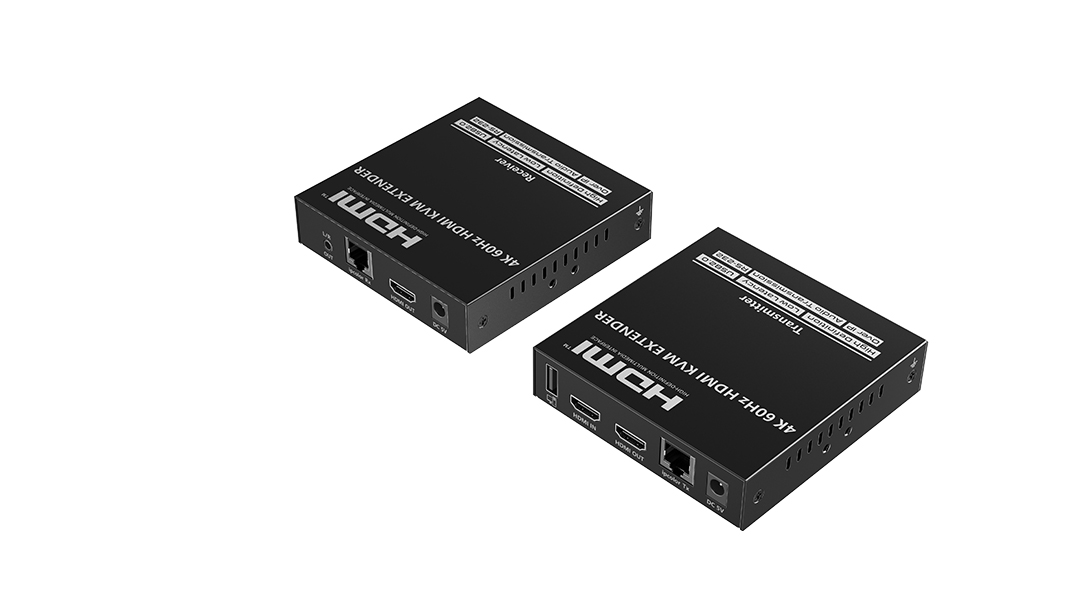

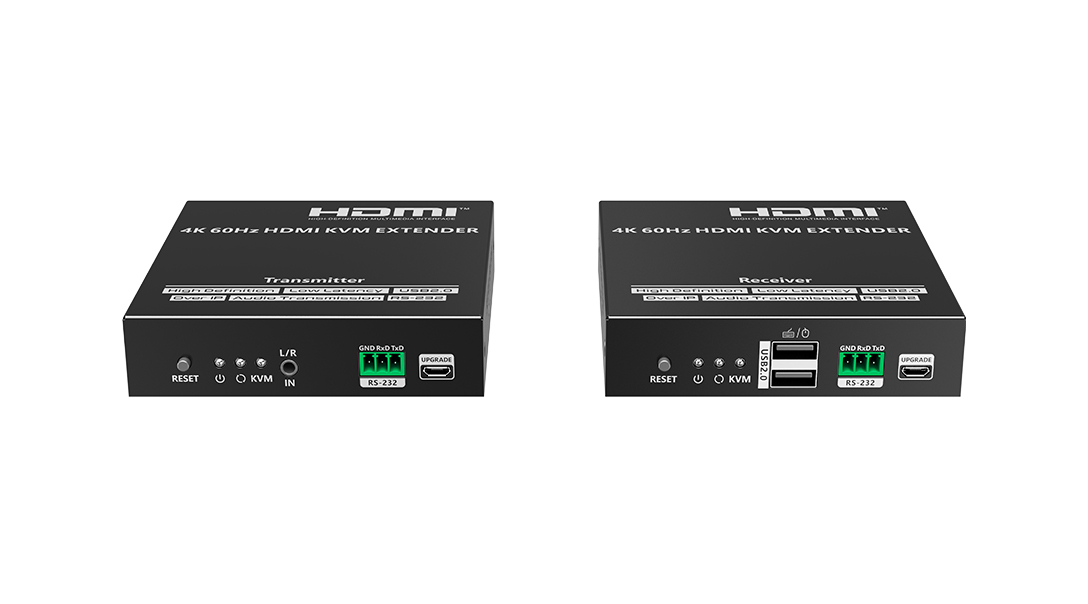

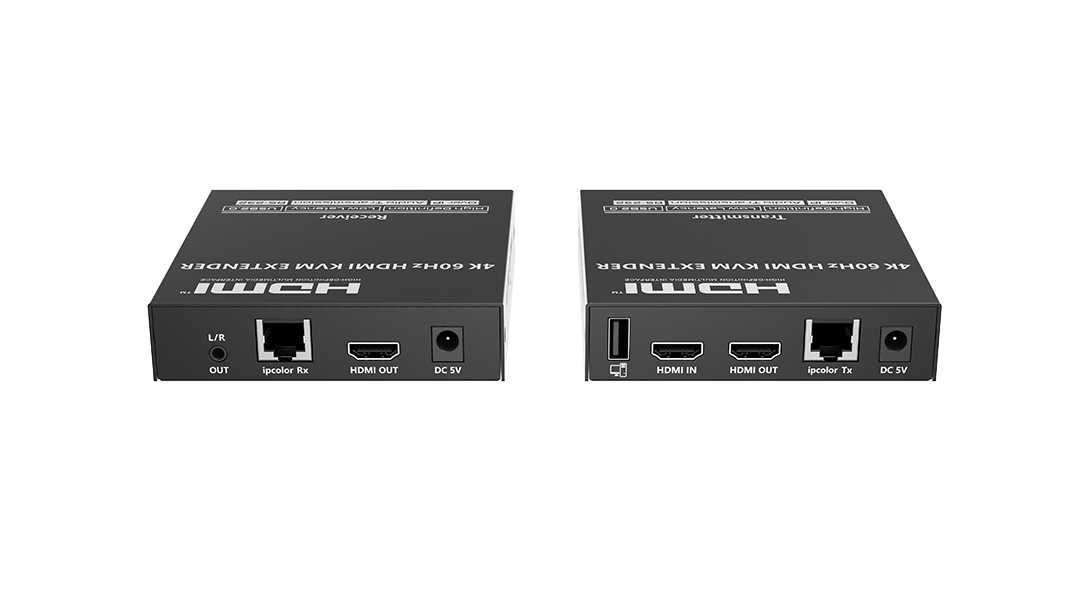

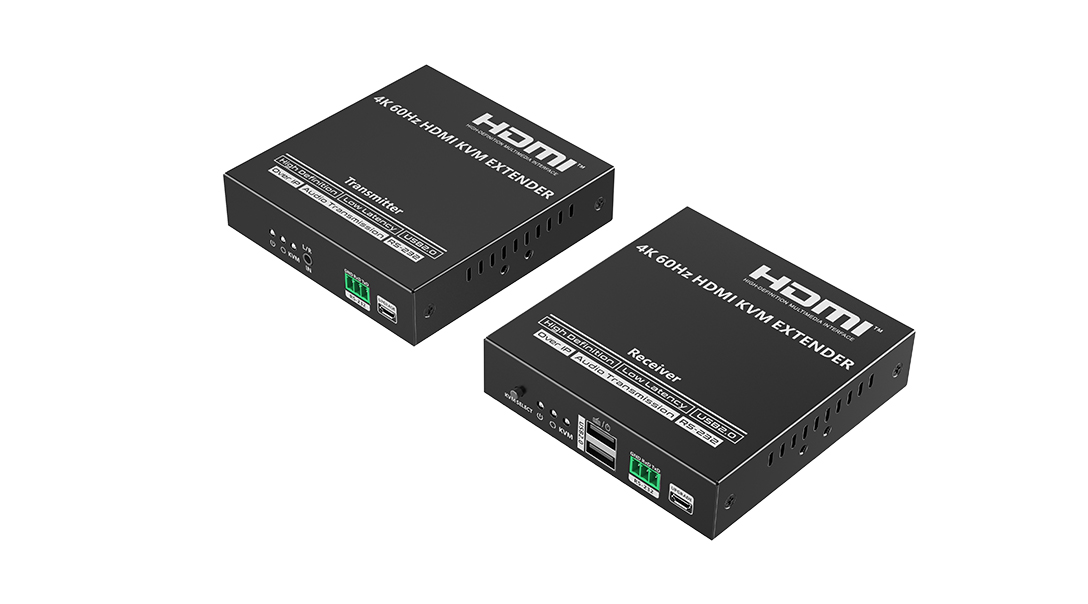

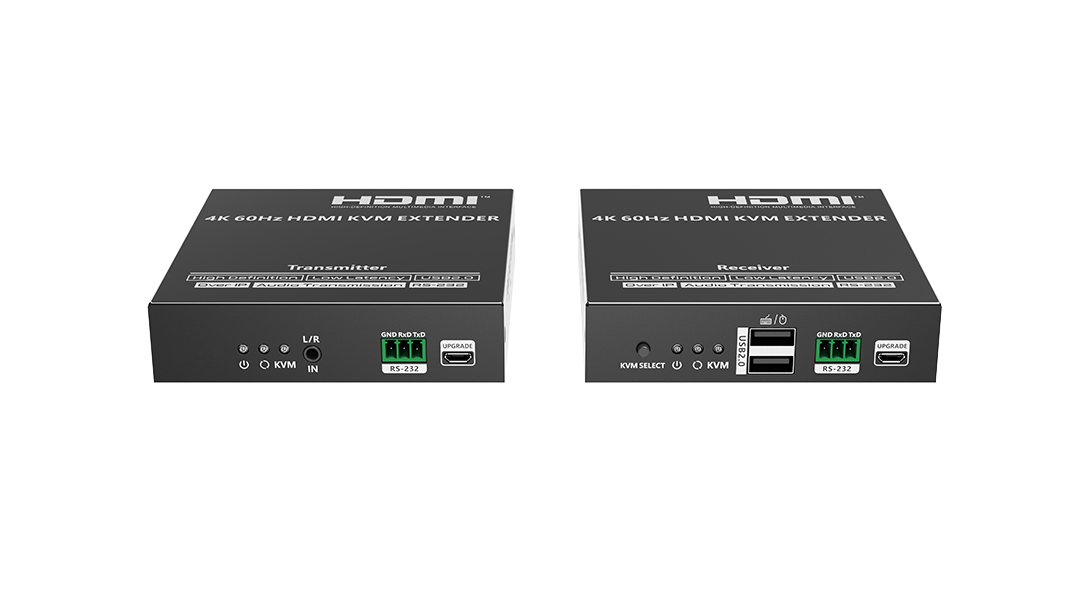

This product is a 4K@60Hz HDMI KVM extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for highdefinition, low-latency transmission. The 4K@60Hz HDMI signal can be extended up to 120m via category 6 and above network cables, supporting one-to-one connection, one-to-many connection via gigabit switch, or switch cascading. It also supports HDMI loop out, KVM, and RS-232 passthrough, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Introduction
Parameters
Downloads


HDMI length
≤ 5m
Maximum transfer rate
18Gbps
Compatibility
HDMI 2.0
HDCP 1.4/HDCP 2.2
Resolutions
3840x2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz, 2560x1440@60Hz
Connection types
One-to-one connection
One-to-many connection
Switch cascading
Transmission distance
Cat6/6A/7≤120m
Transmission latency
80~140ms
HDMI output
LPCM 2.0
3. 5mm L/R output
PCM
RS-232 (GND/RXD/TXD)
Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
USB1.1
Mouse and keyboard
USB2.0
USB2.0 flash drives, cameras, touch screen
Power Supply
DC 5V/2A
Power Consumption
TX ≤ 5.5W,RX ≤ 4W
Working temperature
- 20℃~60℃
Storage temperature
30℃~70℃
Humidity
0~90%RH (no condensation)
Housing
lron
Weight
TX: 311g,RX: 302g
Color
Black
Dimensions
106.0(L)*103.0(W)*25(H)mm
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
