LKV401MV-V2.0

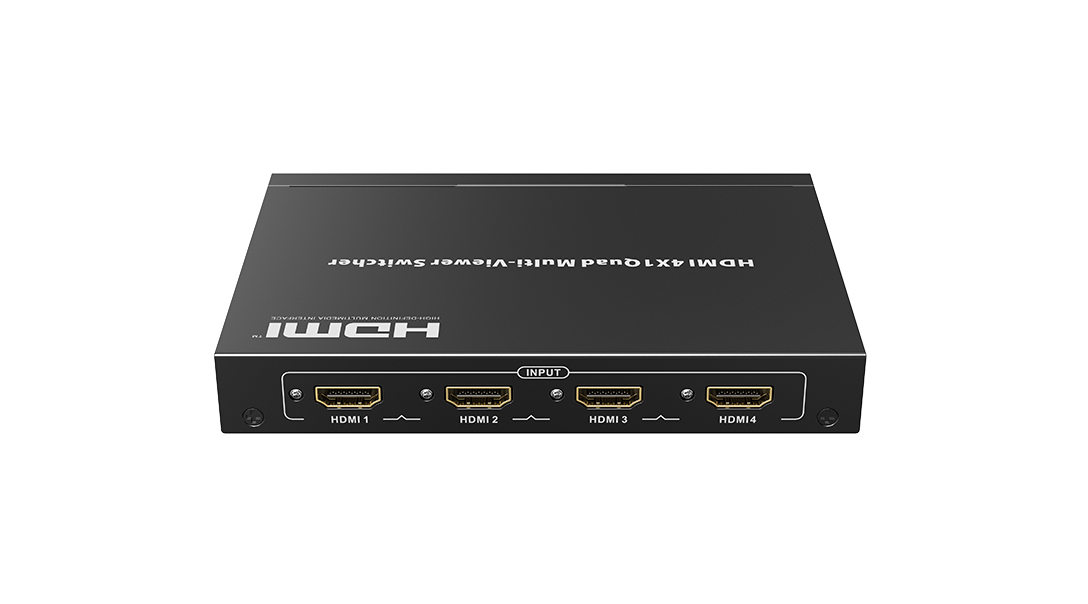

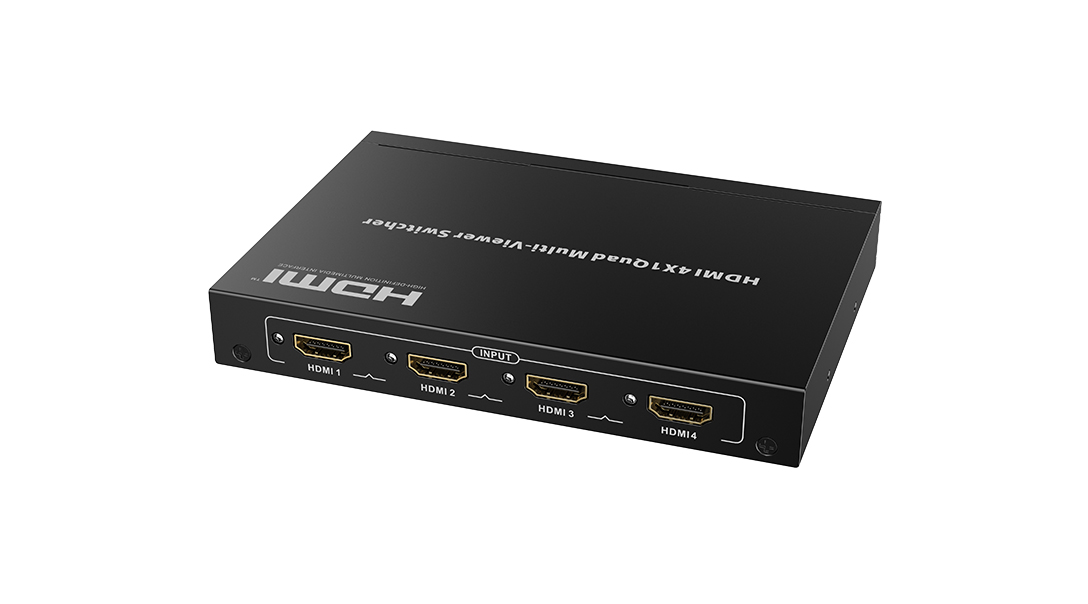

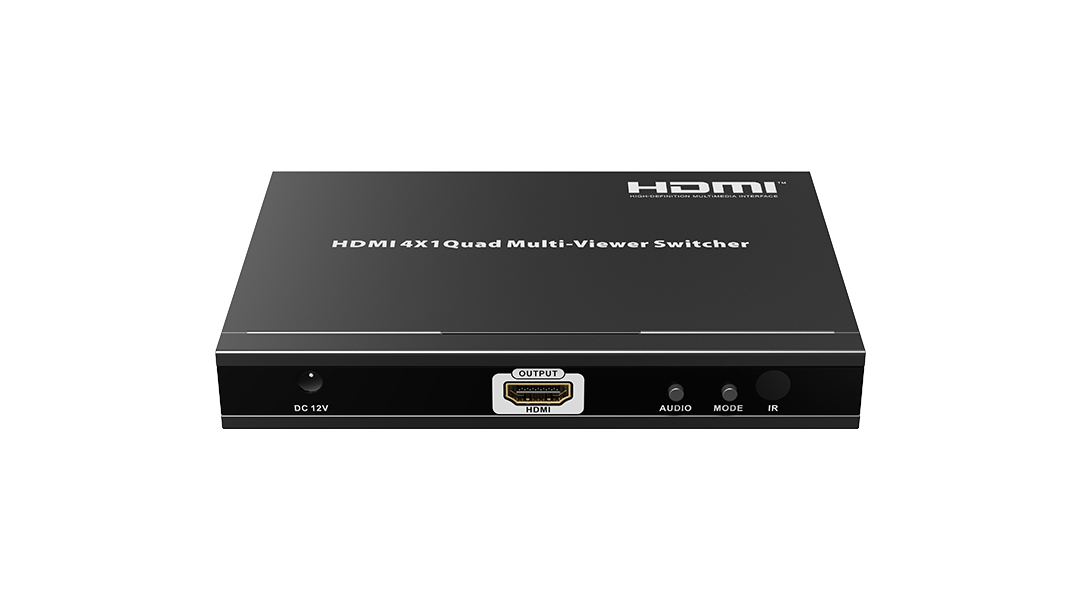

HDMI 4x1 Quad Multiviewer Switcher

1. Supports 4 HDMI inputs, 1 HDMI output
2. Supports quad mode, full screen mode and dual mode
3. HDMI signal resolution supported is up to 1920x1200@60Hz
4. Supports to switch mode by remote control and button in the front of the panel
5. Plug and play
6. Metal casing, stable and durable
7. Wall-mountable design, convenient for installation
8. Supports stable 24/7 operation

Introduction

Parameters

Downloads

Input interface

4x HDMI

Output interface

1x HDMI

HDMI length

≤ 5m

Compatibility

HDMI1.3，HDCP1.4

Audio support

LPCM 2.0

Support mode

Support quad mode, full screen mode and dual mode

Support Resolutions

Input: 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 1920x1200@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1024x768@60Hz, 800x600@60Hz, 576P@50Hz, 480P@60Hz, 640x480@60Hz

Support Resolutions

Output: 720P@60Hz, 1080P@60Hz

Control mode

IR/Button

Power Supply

DC12V/1A

Power Consumption

< 7W

Working Temperature

- 20℃~60℃

Storage Temperature

- 30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

lron

Weight

340g

Color

Black

Dimensions

178.50×104.74×21.20mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
