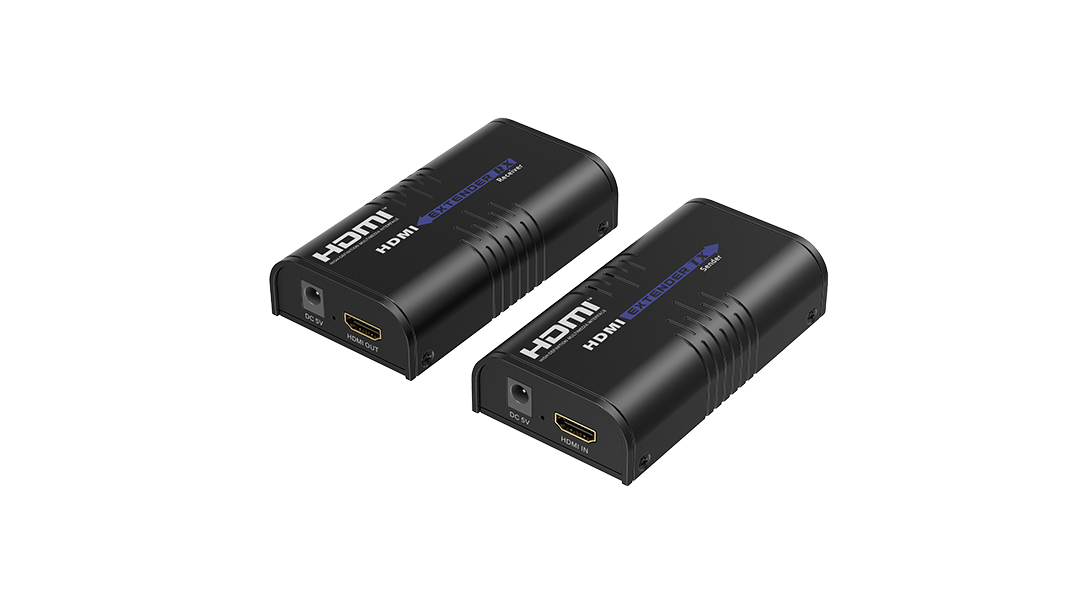

LKV373A-5.0

1080p@60Hz 120M HDMI™ over IP Extender

1. High-definition and low-latency transmission.
2. Support up to 1920 x 1200@60Hz resolution, backward compatible.
3. Compatible with Cat5/5e/6 or above network cables, transmission distance of Cat6 cable is 120 meters.
4. Support one-to-one or one-to-many connections through the gigabit switch.
5. Lightning protection, surge protection, ESD protection.
6. Supports stable 24/7 operation.

Introduction

Parameters

Downloads

HDMI length

≤ 5m

Maximum transfer rate

4.96Gbps

Compatibility

HDMI 1.3，HDCP 1.4

Resolutions

1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600

Connection types

One-to-one connection
One-to-many connection
Switch cascading

Transmission distance

CAT5 80m / CAT5E 100m / CAT6 120m

Transmission latency

80~130ms

HDMI output

LPCM 2.0

Power Supply

DC 5V/1A

Power Consumption

TX ≤ 3.5W，RX ≤ 3W

Working temperature

- 20℃~60℃

Storage temperature

- 30℃~70℃

Humidity

0~90%RH (no condensation）

Housing

Aluminium(Top cover); lron(Bottom cover)

Weight

TX：160g，RX：160g

Color

Black

Dimensions

110.0(L)*58.0(W)*26.0(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
