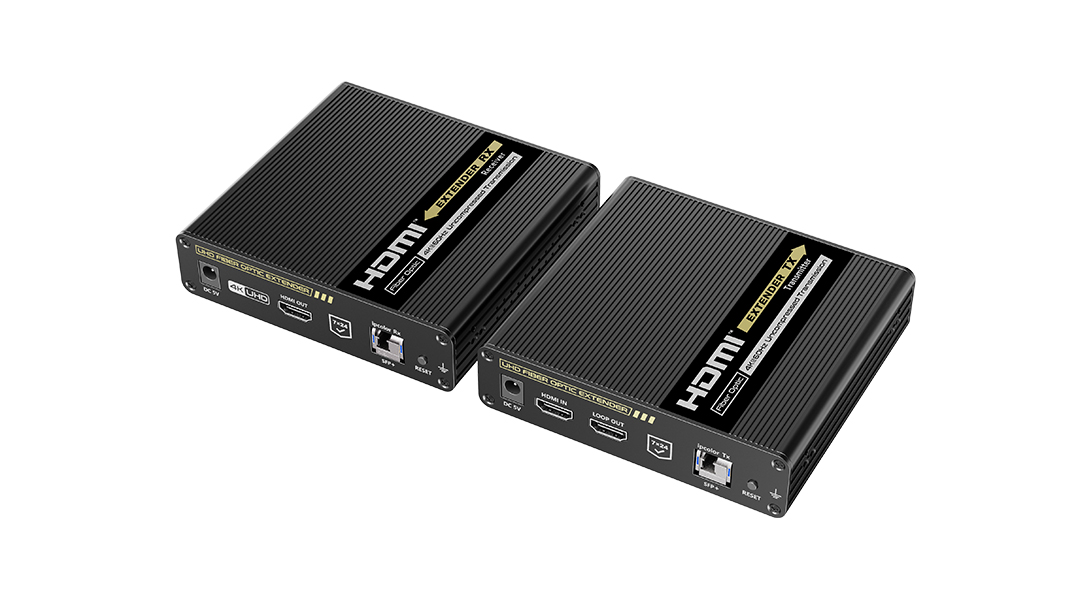

LKV993

4K@60Hz HDMI Over IP Optical Extender 40km

1. support 4K@60Hz, HDR10.
2.Support zero latency, uncompressed transmission.
3. The maximum transmission distance is 40 km.
4. Support one-to-one and one-to-many connection through the 10Gb switch.
5. Support switch cascading.
6. Support bi-directional lR passback.
7.Support HDMI ARC.
8. Support CEC.
9. Support RS-232 passthrough and command control.
10. The receiver can output the source audio additionally through theS/PDlF port.
11. The transmitter supports HDMl loop out.
12. 24/7 reliable.
13. Lightning Protection, Surge Protection, ESD Protection.

Introduction

Parameters

Downloads


Transmission protocol

ipcolor

Latency

Zero latency

Transmission type

Uncompressed transmission

HDMI signal

HDMI 2.0, HDCP 2.2

HDR

HDR10

Optical module type

SFP+

Fiber-optic cable type

Single mode fiber (Use with the default optical modules)

Optical fiber connector type

SFP+ optical fiber module wavelength

1270nm/1330nm

Connection type

One-to-one connection
One-to-many connection
Switch cascading

Transmission distance

≤40km

HDMI Resolution

720P@50/60Hz, 1080P@24/25/50/60 Hz, 1080i@50/60Hz, 1024*768@60Hz, 1280*768@60Hz, 1280*800@60Hz, 1280*960@60Hz, 1280*1024@60Hz, 1440*900@60Hz, 1400*1050@60Hz, 1600*900@60Hz, 1600*1200@60Hz, 1680*1050@60Hz, 1920*1080@60Hz, 1920*1200@60Hz, 2560*1440@60Hz, 2560*1600@60Hz, 3840*2160@24/25/30/50/60/23.9/29.9/59.9Hz, 4096*2160@24/25/30/50/60/23.9/29.9/59.9Hz

Audio formats

LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital plus /Dolby TrueHD/Dolby Digital/Dolby Atmos

Support bi-directional IR passback (20-60kHz)

RS-232

3 pin: GND-TxD-RxD, follows RS-232 levels

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0~90% RH

Protection

ESD protection
1a Contact discharge level 3
1b Air discharge level 3
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection

Power supply

DC 5V/2A

Power consumption

<7W

Material

Aluminum alloy material + crystal panel

Color

Black

Weight

TX: 420g，RX: 420g

Dimension

123.95(L)*115.20(W)*30.00(H)mm
