LKV676P-US

4K@60Hz HDR Wall-Plate HDMI™ Extender

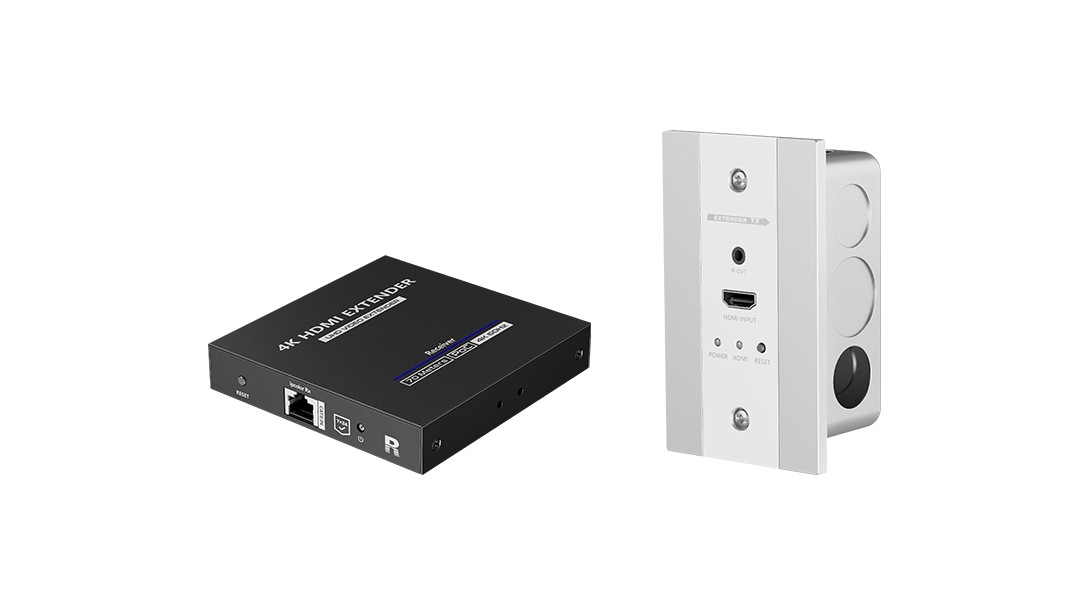

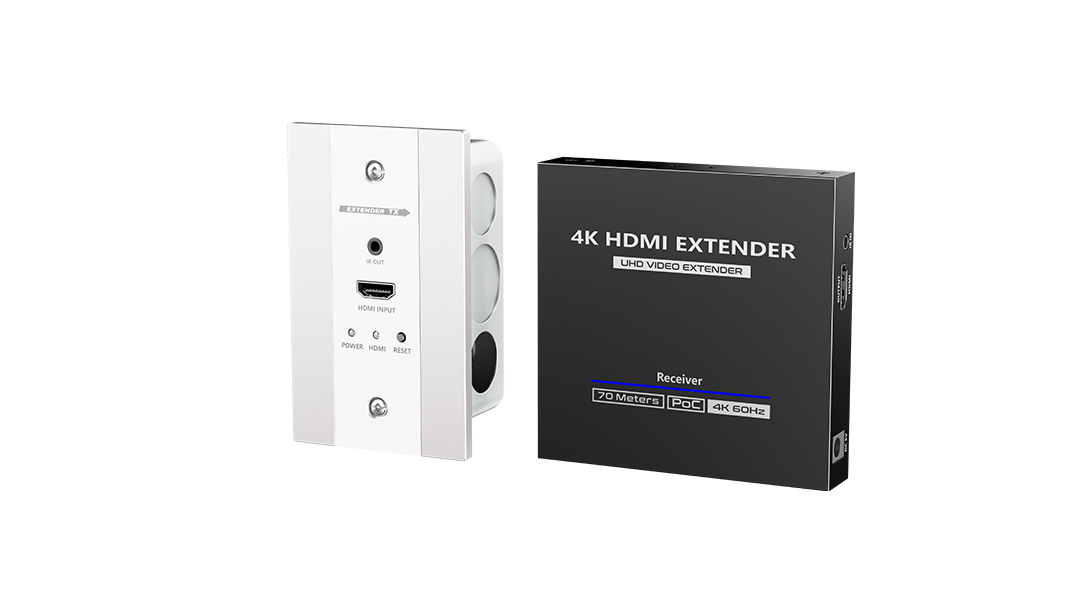

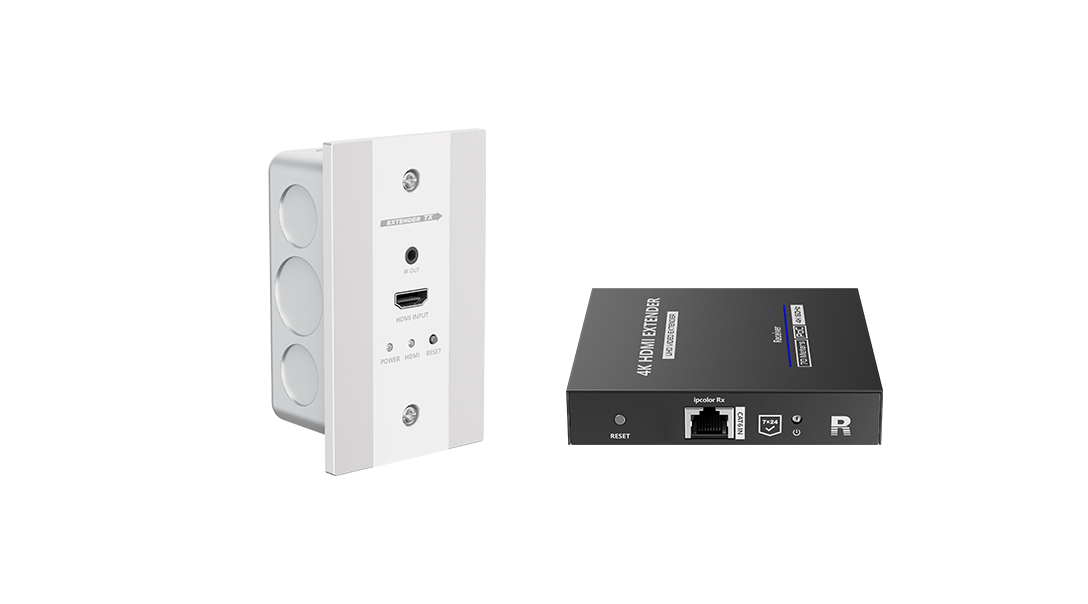

This is an HDMI™ wall plate extender kit and it can realize zero-latency transmission .The transmission distance is up to 70meter over CAT6/6A/7 network cable for 4K@60Hz UHD HDMI™ signal . It supports IR pass back which allows to control video source signal from display side. This wall plate HDMI™ Kit supports POC feature and its transmitter is powered by receiver, no power is needed for its transmitter. It is a reliable ultra-high-definition video transmission solution that can be widely used in security monitoring, home theater, broadcasting and other fields.

Introduction

Parameters

Downloads


HDMI cable

≤5m

Maximum transfer rate

18Gbps

Maximum transmission bandwidth

600MHz

EDID passthrough

Support

Compatibility

HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
HDCP 2.2，HDCP1.4

Resolutions

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 1920x1200

Transmission distance

CAT6/6A/7≤70m

Audio formats

LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos

Receiving range

≤5m

Infrared frequency

20KHz~60KHz

Power Supply

TX: PoC (Powerd by RX)
RX:DC12V/1A

Power Consumption

Tx + Rx < 7W

Working temperature

0℃~60℃

Storage temperature

-30℃~70℃

Humidity

0~90%RH（No condensation）

Housing

Aluminum alloy + Iron

Weight

TX: 238.5g , RX:242.5g

Color

TX:Silver , RX: Black

Dimensions

TX: 70.0(L)x114.0(W)x51.0(H) mm
RX: 105.5(L)x102.5(W)x20(H)mm

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
