LKV372N

4K@30Hz Zero-Latency HDR HDMI™ Extender

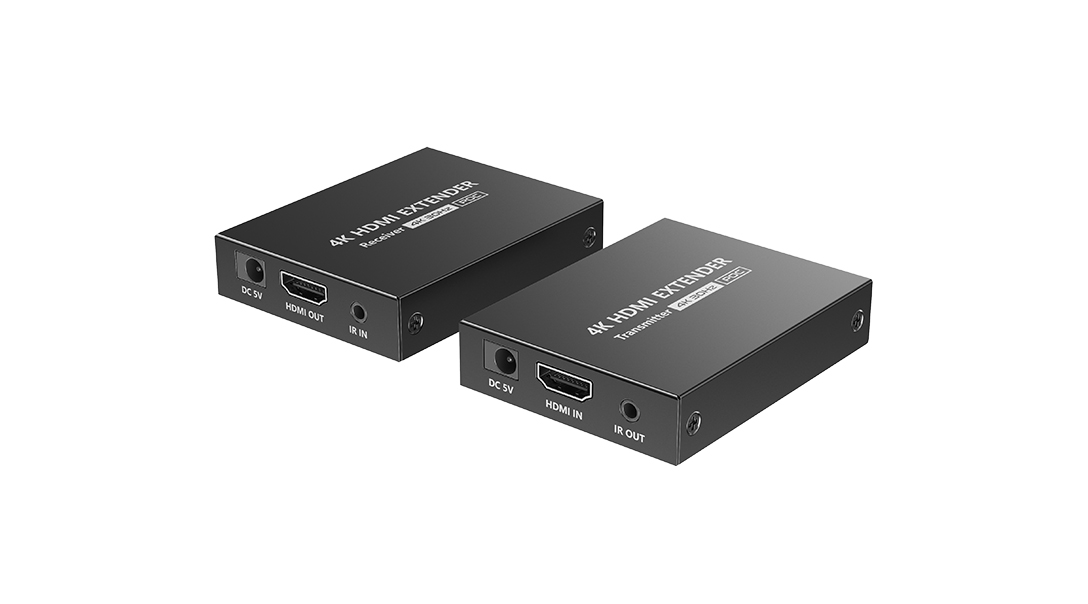

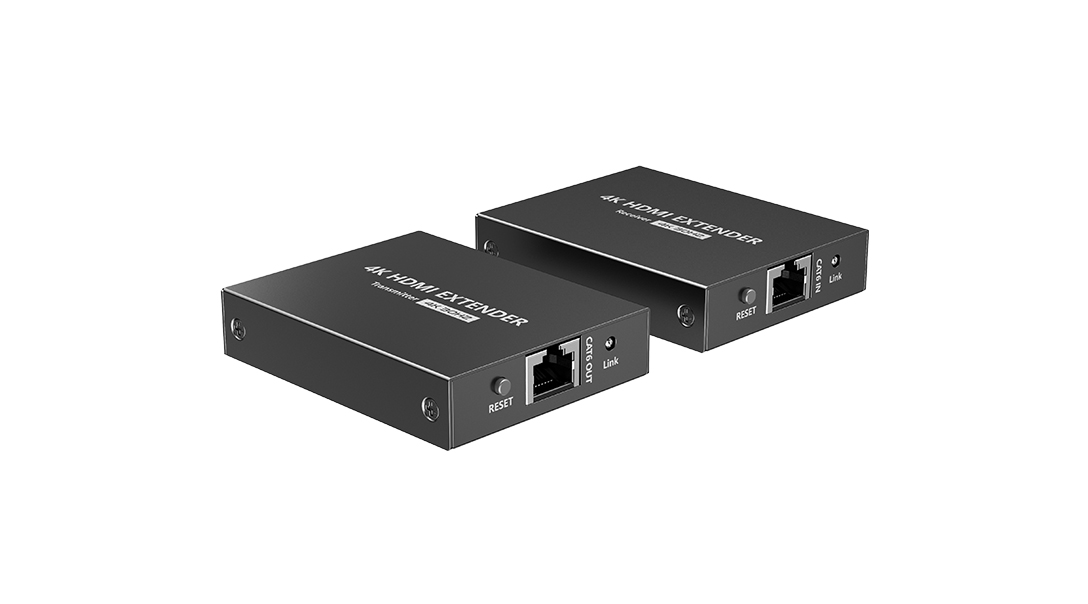

This HDMI™ Extender includes a transmitter unit and a receiver unit, allows the HDMI™ signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports IR pass-back. It is perfect for outdoor advertising, monitor system, home entertainment, conference, etc.

Introduction

Parameters

Downloads


Voltage/Current

DC5V/500mA

Power consumption

TX<1.5W； RX<1.5W

HDMI compliance

HDMI 1.4

HDCP compliance

HDCP 1.4

HDMI resolution

800x600、1024x768、1280x720、 1280x960、1366x768、1440x900、 1680x1050、1920x1080、480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、 1080i@50/60Hz、 1080p@24/25/30/50/60Hz、 3840x2160@24/25/30Hz

Audio formats

DTS、DTS-HD、PCM、LPCM

HDR

Support

EDID through

Support

IR Pass-back

Frequency Range：20~60KHz

Input and output TMDS signal

0.7~1.2Vp-p(TMDS)

Input and output DDC signal

5Vp-p(TTL)

Cat6/6A/7 Transmission Distance

1080p@60Hz transmission 70 meters
4K@30Hz transmission 40 meters

Electrostatic protection of the whole machine

Implementation of the standard:
IEC61000-4-2
1a Contact discharge level 2（±4KV）
1b Air discharge level 3 (±8KV)

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity (no condensation)

0～90%RH

Dimension

75.0(L) x 60.0(W) x 16.5(H) mm

Weight

TX:127g RX:127g

Color

Black
